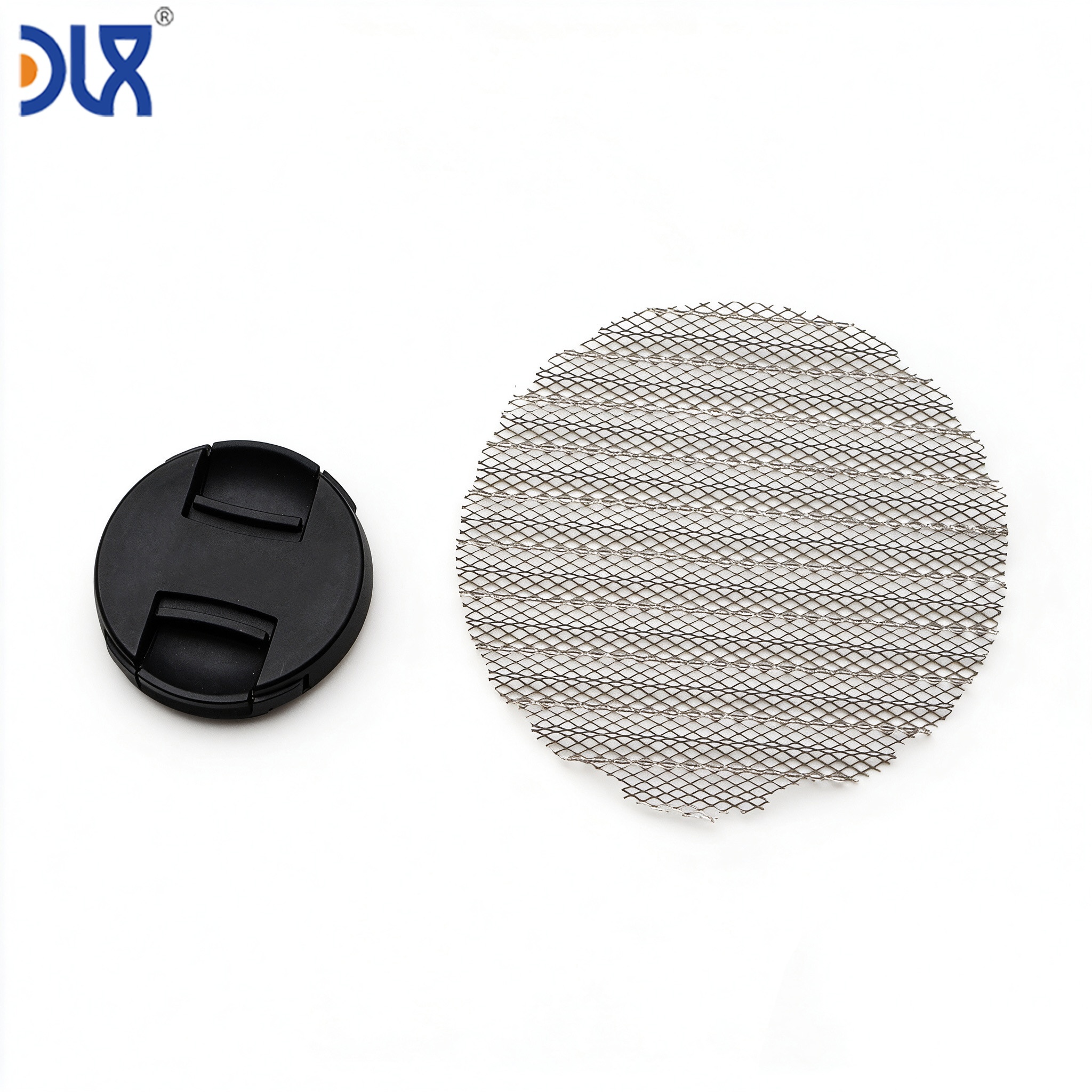

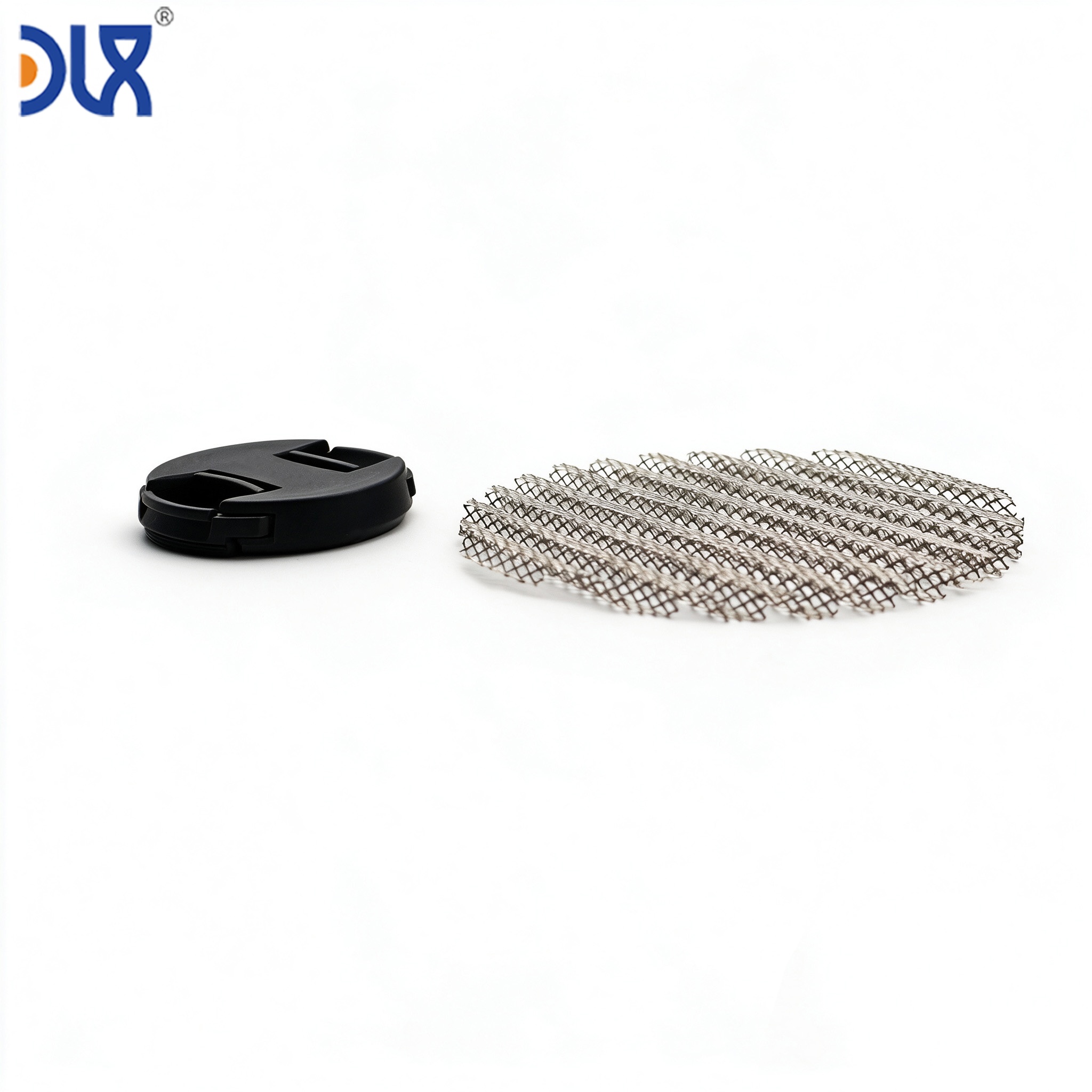

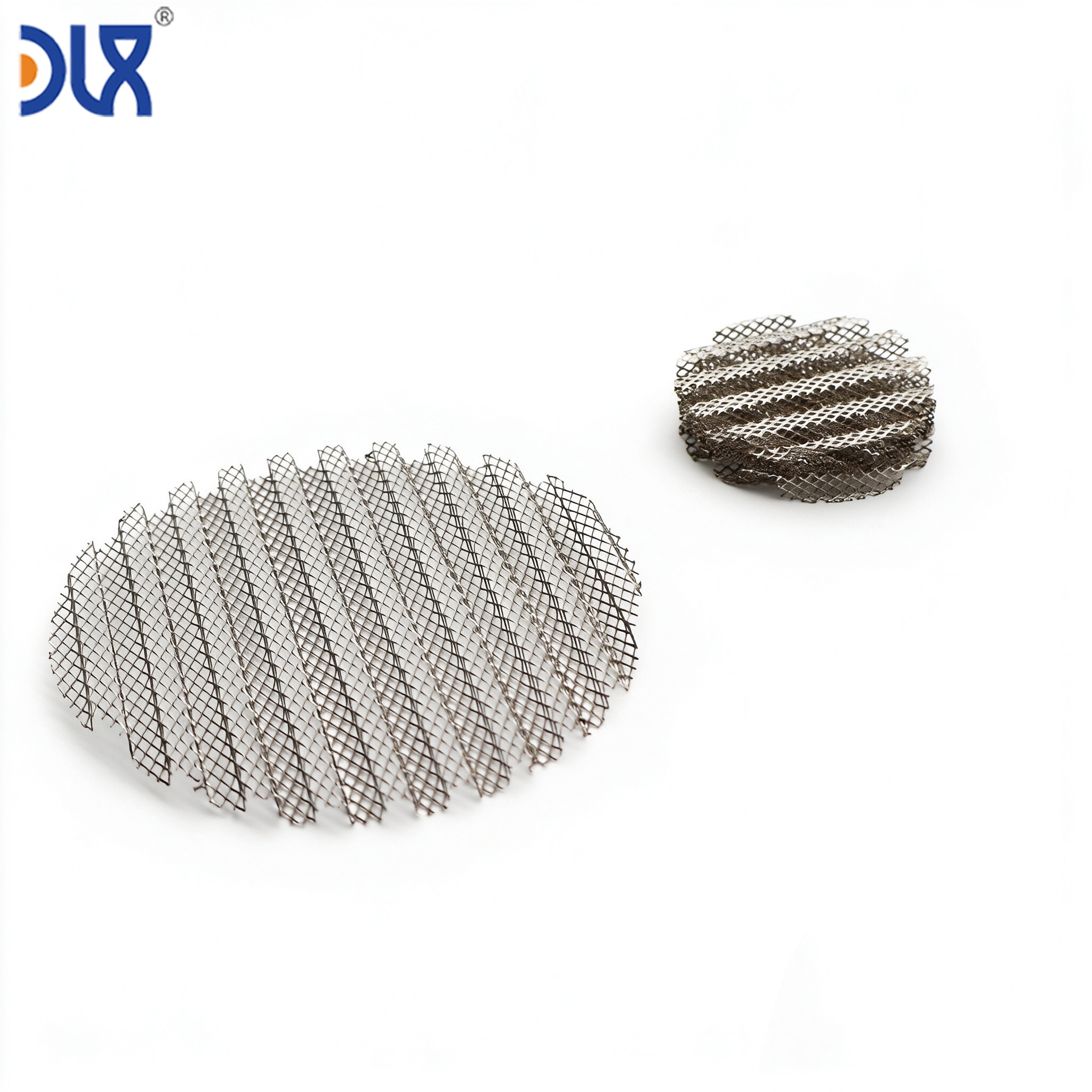

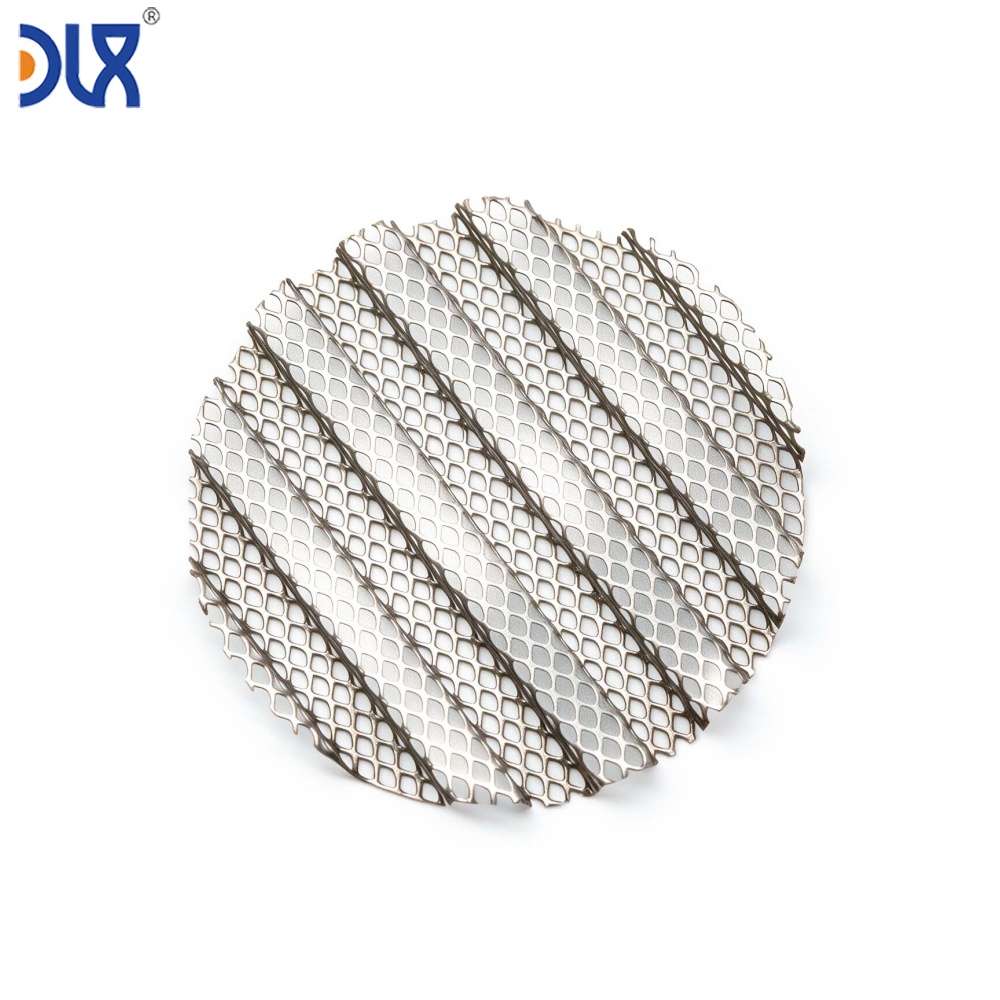

Zigzag Flow Pure Nickel Mesh Wholesale for Alkaline Water Electrolyzer
Zigzag flow pure nickel mesh is a high-purity nickel electrode mesh engineered specifically for alkaline water electrolyzers. Its unique zigzag flow channel design improves electrolyte circulation, gas separation, and current distribution, delivering higher efficiency and longer service life in hydrogen production systems. Available in wholesale quantities with customizable mesh size, thickness, and dimensions.
- Overview
- Specification
- Applications
- DLX Alloy Manufacturer
- FAQs
- Recommended Products
- Zigzag flow channel structure – Optimized geometry promotes uniform electrolyte distribution, faster gas removal, and reduced dead zones in alkaline water electrolyzers.
- High-purity pure nickel material – Excellent electrical conductivity, outstanding corrosion resistance in concentrated KOH/NaOH electrolytes, and long-term dimensional stability.
- Superior current collection & distribution – Low electrical resistance and even current density support higher current densities and improved energy efficiency.
- Customizable specifications – Mesh aperture, wire diameter, thickness, open area ratio, and overall dimensions can be tailored to specific electrolyzer designs.
- Wholesale supply & consistent quality – Factory-direct production ensures batch-to-batch consistency, competitive pricing, and reliable lead times for large-volume orders.
- Mechanical strength & formability – Suitable for stacking, welding, or integration into bipolar plate assemblies without compromising structural integrity.
Overview – Zigzag Flow Pure Nickel Mesh for Alkaline Water Electrolysis
Our zigzag flow pure nickel mesh is manufactured from high-purity nickel (typically ≥99.5% or higher) and features a precision-engineered zigzag flow pattern. This specialized structure enhances electrolyte flow dynamics inside alkaline water electrolyzers, reduces concentration polarization, improves bubble detachment, and supports stable, high-efficiency hydrogen and oxygen evolution.
Ideal for zero-gap or advanced alkaline electrolyzer stacks, the mesh serves as a durable, highly conductive electrode or current collector. Compared with conventional flat nickel mesh or nickel foam, the zigzag flow design offers superior mass transport and lower overpotential under continuous operation. We supply this pure nickel mesh in bulk for electrolyzer manufacturers, hydrogen energy projects, and industrial water electrolysis systems worldwide.
Features – High-Performance Pure Nickel Electrode Mesh with Zigzag Flow Design
| Parameter | Technical Specification (Customizable) |
|---|---|
| Material Grade | Pure Nickel (Ni200/Ni201), N6, Titanium Gr1/Gr2 |
| Purity | Ni 99.5% / 99.9% |
| LWD (Long Way of Diamond) | 1.5mm – 6.0mm |
| SWD (Short Way of Diamond) | 0.8mm – 3.5mm |
| Strand Width | 0.15mm – 0.6mm |
| Thickness | 0.05mm – 0.4mm |
| Mesh Pattern | Zigzag Hexagonal / Staggered Flow Channel |
| Form | Flattened or Unflattened (As per cell design) |
| Surface Treatment | Ultrasonic Degreased / Optional Raney Nickel Coating |
Applications – Pure Nickel Mesh for Alkaline Water Electrolyzer & Hydrogen Production Systems
- Alkaline water electrolyzers (AWE) for green hydrogen production
- Industrial-scale hydrogen generators and electrolysis plants
- Zero-gap alkaline electrolyzer stacks and advanced electrode assemblies
- Research and pilot-scale water electrolysis systems
- Current collectors or porous electrodes in KOH-based electrochemical cells
- Replacement or upgrade mesh for existing alkaline electrolyzer units requiring improved flow dynamics
With over 22 years of industry experience, Changzhou DLX Alloy Co., Ltd. has established itself as a global leader in the research, development, and production of high-performance nickel-based alloys. Our state-of-the-art facility in Jiangsu, China, is ISO 9001 and SGS certified, ensuring that every product meets rigorous international quality standards.
Based in Jiangsu, China, Changzhou DLX Alloy operates a massive 20,000+ m² state-of-the-art facility. We ensure stable supply for large-scale green hydrogen projects globally.
- Global Export Expertise: We serve major hydrogen energy and industrial sectors across Europe, the Americas, and Southeast Asia, providing specialized OEM/ODM services for complex electrode designs.
- R&D Excellence: Our team focuses on material innovation, ensuring our Nickel Expanded Metal products remain at the forefront of the green energy transition.
- Quality Commitment: From raw material selection to final precision expansion, we maintain 100% traceability and quality control to ensure your electrolyzer stacks operate at peak efficiency.
FAQ – Zigzag Flow Pure Nickel Mesh Wholesale Questions
Q1: What purity level is the pure nickel mesh?
A: Standard material is high-purity nickel (typically ≥99.5%). Higher purity grades can be supplied upon request for critical alkaline water electrolyzer applications.
Q2: How does the zigzag flow design benefit alkaline water electrolyzers?
A: The zigzag channels improve electrolyte circulation, accelerate bubble release, reduce concentration gradients, and help achieve more uniform current distribution, resulting in higher efficiency and better long-term performance compared with flat mesh.
Q3: Can you supply custom sizes and mesh specifications?
A: Yes. Mesh opening size, wire diameter, thickness, sheet dimensions, and open area ratio can be customized to match your electrolyzer design. Please provide drawings or target parameters for quotation.
Q4: Is this pure nickel mesh suitable for both anode and cathode in alkaline electrolysis?
A: Pure nickel mesh is widely used as both anode and cathode current collector/electrode substrate in alkaline water electrolyzers due to its excellent stability in alkaline media. Surface treatments or catalysts can be applied as needed.
