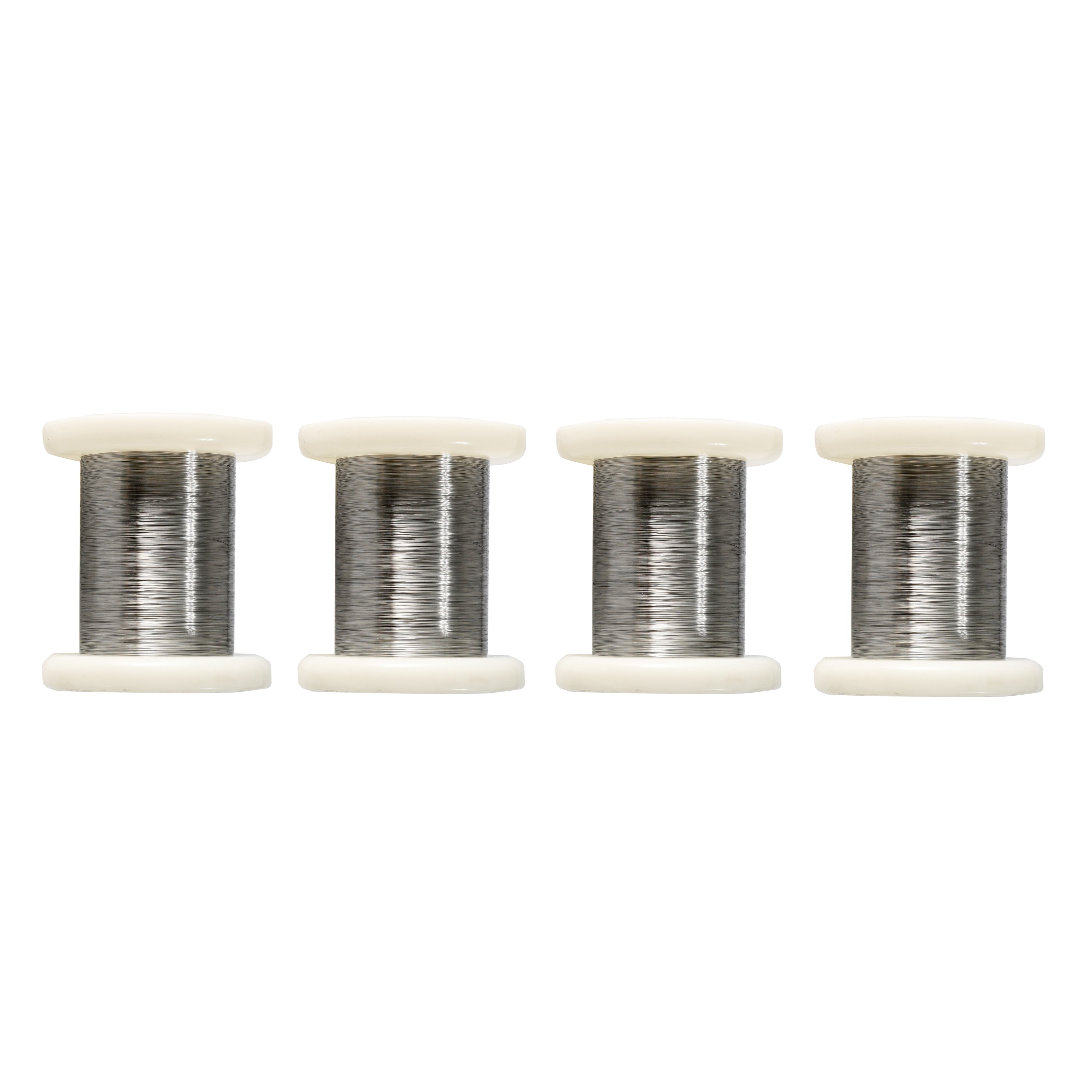

High Strength Inconel 617 Spool Wire: Precision Drawn 1.0mm for Thermal Barrier
Engineered for mission-critical thermal barrier component fabrication, our precision-drawn 1.0mm high strength Inconel 617 spool wire delivers superior solid-solution strengthening, outstanding high-temperature oxidation resistance, and ultra-tight dimensional stability across extreme thermal environments.
- Overview
- Features
- Specifications
- Applications
- Why-Us
- FAQ
- Recommended Products
Structural Integrity at Extreme Temperatures: Resists grain coarsening and embrittlement during prolonged exposure above 980°C.
Microstructural Uniformity: Vacuum-melted and precision-processed to eliminate non-metallic inclusions, ensuring defect-free thermal welds and overlay transitions.
Superior Carburization Resistance: Performs reliably in combustion gas flows and aggressive high-temperature reducing environments.
High strength Inconel 617 spool wire in 1.0mm precision-drawn diameter is a solid-solution strengthened nickel-chromium-cobalt-molybdenum alloy engineered specifically for high-stress, high-temperature thermal barrier component fabrication. Combining high-temperature creep rupture strength with exceptional resistance to oxidation and carburization up to 1100°C, this 1.0mm wire ensures continuous feedability and metallurgical consistency across automated welding, additive thermal profiling, and thermal barrier frame fabrication.
| Specification Parameter | Value & Technical Metric |
|---|---|
| Product Grade | Inconel 617 (UNS N06617 / Nickel-Chromium-Cobalt-Molybdenum) |
| Form & Diameter | Precision Drawn Spool Wire / 1.0 mm (±0.01 mm tolerance) |
| Delivery Temper | Bright Annealed / Stress-Relieved Condition |
| Max Service Temperature | Continuous operation up to 1100°C (2012°F) |
| Surface Finish | Ultra-clean, lubricant-free bright drawn finish |
| Spool Type | Precision layer-wound spools (SD300 / BS300 / Custom B2B spools) |
| Packaging & Traceability | Sealed moisture-barrier packaging with full heat heat-treatment traceability |
Detailed Overview: High Strength Inconel 617 Spool Wire Metallurgy
Advanced Solid-Solution Strengthening for High-Temperature Demands
High strength Inconel 617 spool wire derives its exceptional mechanical stability from an optimized balance of nickel, chromium, cobalt, and molybdenum. The dense chromium content forms a continuous, self-healing protective oxide scale, while cobalt and molybdenum provide robust matrix strengthening against high-temperature creep deformation.
When applied in precision thermal barrier component fabrication, our 1.0mm precision-drawn wire exhibits:
Key Features of Precision Drawn 1.0mm Inconel 617 Wire
1. Ultra-Tight Dimensional Tolerance (±0.01mm)
Engineered through multiple diamond-die drawing stages, each 1.0mm high strength Inconel 617 spool wire maintains laser-monitored circularity and uniform diameter, preventing wire-feeding jams in robotic TIG, MIG, and laser cladding equipment.
2. High Creep-Rupture Strength Above 1000°C
Unlike standard nickel grades, high strength Inconel 617 spool wire preserves load-bearing capability under cyclic thermal fatigue, making it indispensable for hot-section thermal barrier anchoring and edge reinforcement.
3. Clean Spooling with Zero Tangle Memory
Precision layer-wound on dynamic-tension spools, our 1.0mm wire eliminates cast-and-helix discrepancies, ensuring smooth, uninterrupted deposition during complex thermal barrier component fabrication.
4. Controlled Surface Roughness and Purity
The bright-annealed surface is thoroughly degreased and free of drawing lubricants, ensuring zero porosity and minimal spatter during fusion joining.
Technical Data & High-Temperature Properties
Typical Chemical Composition (Nominal wt%)
| Element | Ni | Cr | Co | Mo | Al | Fe | C |
|---|---|---|---|---|---|---|---|
| Balance | ~52.0 - 55.0% | 20.0 - 24.0% | 10.0 - 15.0% | 8.0 - 10.0% | 0.8 - 1.5% | ≤ 3.0% | 0.05 - 0.15% |
Mechanical & Physical Performance Metrics
| Physical & Mechanical Property | Metric Value |
|---|---|
| Density | 8.36 g/cm³ |
| Melting Range | 1330°C – 1380°C |
| Tensile Strength (Room Temp, Annealed) | ≥ 700 MPa |
| Yield Strength (0.2% Offset) | ≥ 300 MPa |
| Elongation at Break (A50mm) | ≥ 35% |
| Electrical Resistivity (20°C) | ~1.22 μΩ·m |
Targeted Applications in Thermal Barrier & High-Temperature Fabrication
Thermal Barrier Component Fabrication & Transition Liners
High strength Inconel 617 spool wire serves as the structural backing and joint binder for combustion transition ducts, flame holders, and thermal barrier tile frames where extreme thermal gradients occur.
Gas Turbine & Aerospace Hot-Section Assemblies
Used for precision welding and additive buildup of turbine ring segments, exhaust nozzles, afterburner liners, and heat shield brackets.
High-Temperature Petrochemical & Power Generation Hardware
Ideal for catalyst grid fabrication, high-temperature thermocouple protection sleeves, and nitric acid production baffles exposed to simultaneous thermal and oxidative stresses.
Why Choose DLX for High Strength Inconel 617 Spool Wire

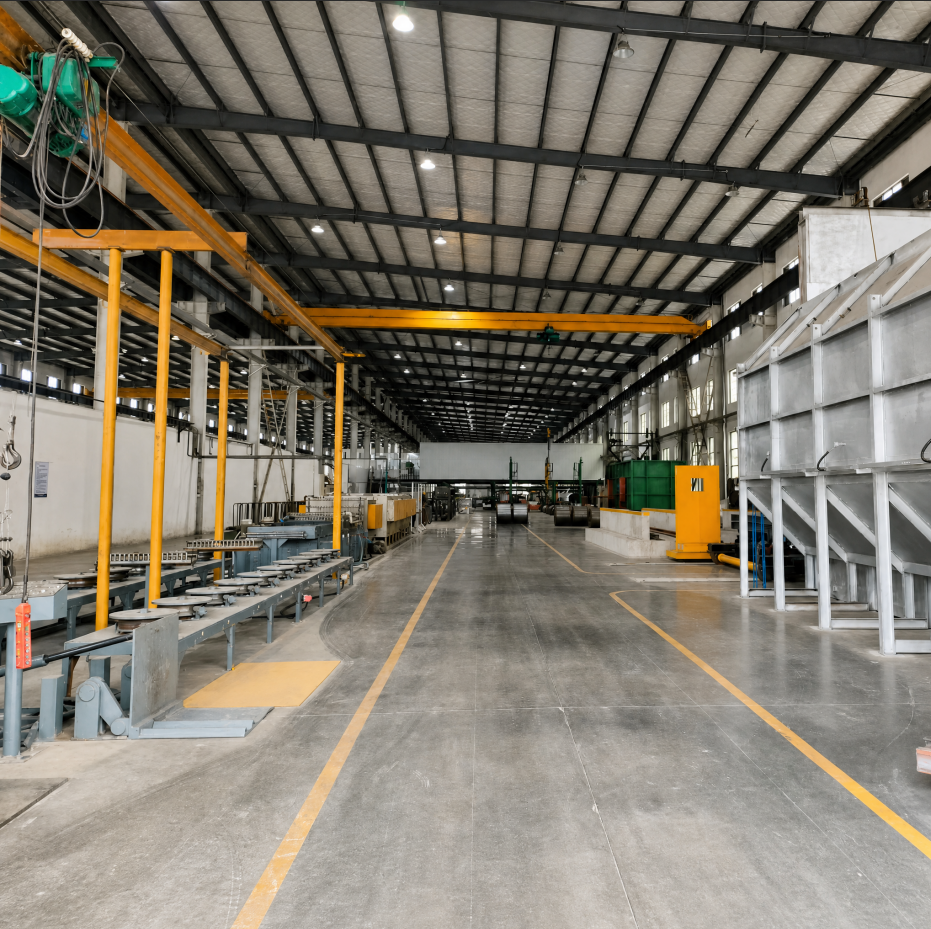

Full-Process In-House Quality Control
At DLX/DZX, we manage every step from vacuum induction melting (VIM) and electroslag remelting (ESR) to multi-pass fine drawing and continuous bright annealing. Every spool of 1.0mm high strength Inconel 617 wire undergoes strict 100% eddy current testing and optical diameter verification.
Robust Monthly Capacity & B2B Reliability
-
1,200 Tons/Month Total Production Scale: Guaranteeing stable supply chains for OEM manufacturers and international contractors.
-
Customized Packaging & Spooling: Offering dynamic B2B MOQ based on spool configurations (1kg, 5kg, 15kg plastic/metallic spools or bulk coils).
-
Comprehensive Mill Certification: Complete chemical analysis, tensile testing records, and metallurgical inspection reports delivered with every batch.
Frequently Asked Questions
Q1: Why is Inconel 617 preferred over Inconel 625 for thermal barrier component fabrication?
A: While Inconel 625 offers superior wet-corrosion resistance at moderate temperatures, Inconel 617 is alloyed with significant cobalt and molybdenum, providing substantially higher creep-rupture strength and oxidation resistance at elevated temperatures exceeding 980°C up to 1100°C.
Q2: What dimensional tolerances are maintained on the 1.0mm precision-drawn spool wire?
A: Our 1.0mm high strength Inconel 617 spool wire is drawn to an ultra-precise tolerance of ±0.01mm with consistent ovality control, ensuring reliable performance in automated and robotic welding systems.
Q3: How is the wire packaged to prevent surface oxidation and contamination?
A: Each spool is precision layer-wound, desiccant-packed, and vacuum-sealed inside a moisture-resistant foil bag before being packed into impact-resistant export cartons and wooden crates.
Q4: Can DLX provide custom spool weights and wire diameters?
A: Yes. In addition to 1.0mm wire on standard 15kg spools, we provide customized diameters from 0.05mm to 4.0mm on small development spools or bulk pay-off packs tailored to your production equipment.
