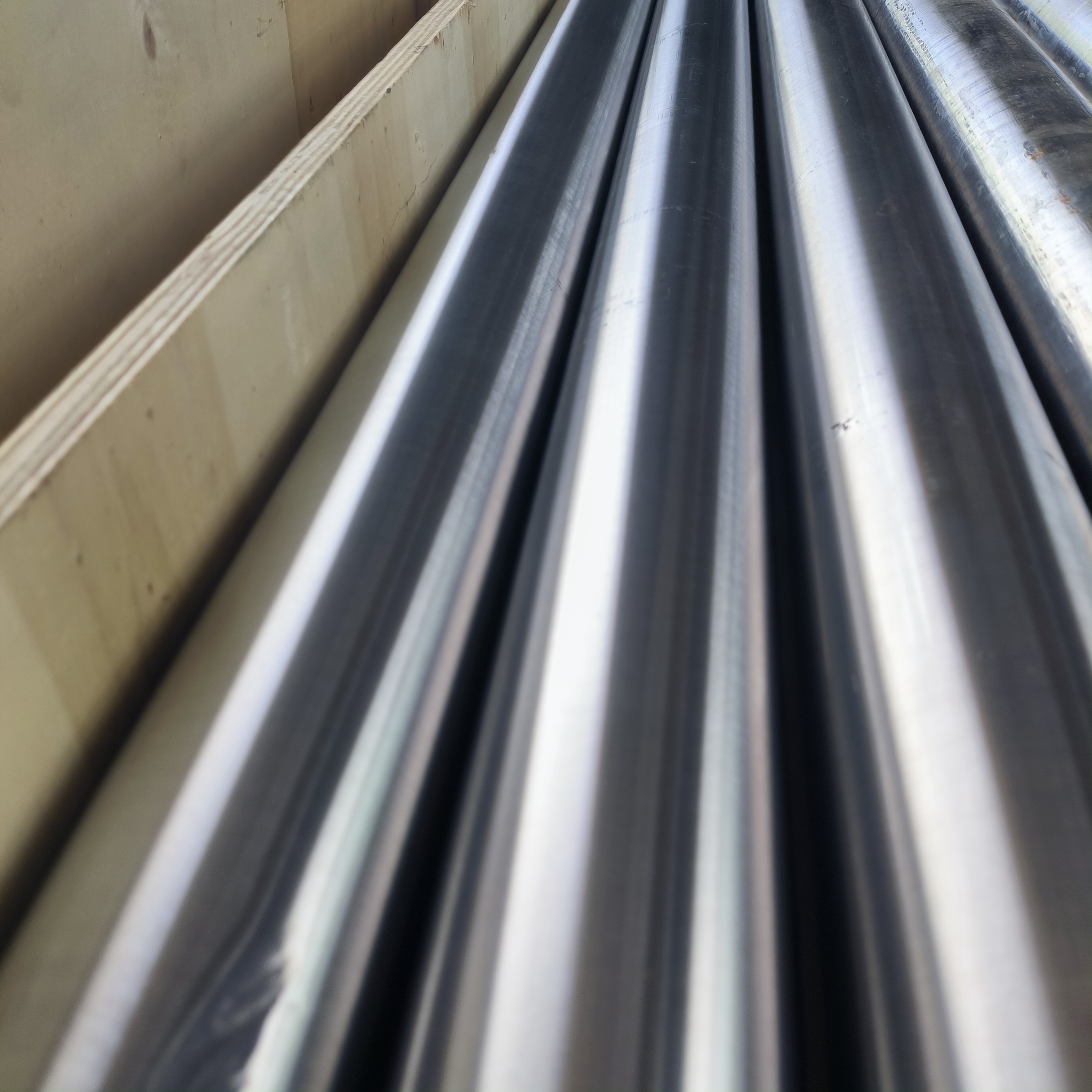

Inconel 713C Bar for High-Temperature Gas Turbine Blades & Nozzles
Discover our Inconel 713C heat-resistant bar designed specifically for automotive turbocharger applications. This high-performance nickel-chromium alloy offers exceptional heat resistance, strength, and durability. We support VTB payment for easy transactions. Available in sizes 80*780mm, 80*880mm, and 80*700mm.
- Overview
- Specification
- Applications
- FAQs
- Recommended Products
- High Temperature Resistance: Ideal for applications requiring high resistance to oxidation and thermal fatigue, with excellent stability up to 900°C.
- Outstanding Creep Strength: Ensures the longevity and structural integrity of critical components used in military drones.
- Superalloy Composition: Contains nickel, chromium, molybdenum, and niobium to enhance strength at elevated temperatures.
- Excellent Fabrication Properties: Designed for easy machining and high-precision manufacturing.
- Payment Flexibility: We support VTB payment options, making wholesale transactions seamless and secure.
Inconel 713C is a nickel-chromium superalloy designed for high-performance applications in the aerospace and defense industries, particularly for military drones. Known for its exceptional oxidation resistance, creep strength, and thermal stability, Inconel 713C is the material of choice for parts exposed to extreme heat and stress. This round bar form is ideal for manufacturing turbine blades, engine components, and other high-temperature parts crucial for military drone systems.
Shop high-quality Inconel 713C Round Bar for military drone applications. Engineered for strength, oxidation resistance, and high-temperature performance, perfect for aerospace and military use. We offer competitive pricing with VTB payment options for wholesale orders.
Key Features of Inconel 713C bar
Chemical Composition (wt.%)
| Element | Content (AMS 5391) |
|---|---|
| Chromium (Cr) | 12.00 – 14.00 |
| Molybdenum (Mo) | 3.80 – 5.20 |
| Niobium + Tantalum (Nb+Ta) | 1.80 – 2.80 |
| Aluminum (Al) | 5.50 – 6.50 |
| Titanium (Ti) | 0.50 – 1.00 |
| Carbon (C) | 0.08 – 0.20 |
| Boron (B) | 0.005 – 0.015 |
| Zirconium (Zr) | 0.05 – 0.15 |
| Silicon (Si) | ≤ 0.50 |
| Manganese (Mn) | ≤ 0.25 |
| Iron (Fe) | ≤ 2.50 |
| Copper (Cu) | ≤ 0.50 |
| Nickel (Ni) | Balance |
| Property | Value |
|---|---|
| Density | 7.91 g/cm³ |
| Melting Range | 1260 – 1288 °C |
| Thermal Expansion Coefficient | 5.92 – 9.48 ×10⁻⁶ /°F (70–2000°F) |
| Thermal Conductivity | 146 – 334 BTU·in/hr·ft²·°F |
| Tensile Strength | ≥ 760 MPa (110 ksi) |
| Yield Strength (0.2%) | ≥ 690 MPa (100 ksi) |
| Elongation | ≥ 3% |
| Hardness | HRC 30 – 42 |
| Creep Rupture Strength (980°C / 30h) | 152 MPa |
| Max Service Temperature | ≤ 900 °C |
Applications of Inconel 713C bars
- Aerospace: Engine components, turbine blades, and other critical parts exposed to extreme heat.
- Military Drones: Parts that require high strength, resistance to oxidation, and thermal stability.
- Energy & Power: Components in high-temperature power generation systems.
- Industrial Gas Turbines: Applications where prolonged exposure to elevated temperatures is required.
FAQs:
1. What is Inconel 713C used for?
Inconel 713C is primarily used in aerospace and military applications, including military drones, gas turbines, and high-temperature engine components due to its superior high-temperature strength, oxidation resistance, and creep resistance.
2. Can I purchase Inconel 713C round bars in bulk?
Yes, we offer wholesale prices for Inconel 713C round bars. We can accommodate large orders tailored to your specific requirements.
3. Do you support international payments?
Yes, we accept VTB payments, providing a secure and flexible payment method for international clients.
4. What are the mechanical properties of Inconel 713C?
Inconel 713C has a tensile strength of 760 MPa, a yield strength of 690 MPa, and it maintains excellent ductility, with an elongation of 3% minimum. It also exhibits high creep strength at temperatures up to 900°C.
5. How does Inconel 713C perform in high-temperature environments?
Inconel 713C offers excellent resistance to thermal fatigue and oxidation in extreme heat, making it ideal for parts exposed to high temperatures, such as those used in military drone engines.
6. Can Inconel 713C be used for manufacturing turbine blades?
Yes, due to its high-temperature strength and resistance to thermal degradation, Inconel 713C is commonly used to manufacture turbine blades and other critical aerospace components.
